DGEBA/Edamine Epoxy
CROW logo
Poly(bis-A diglycidyl ether- alt - ethylenediamine)


NAMES AND IDENTIFIERS OF POLYMER

POLYMER CLASS Epoxy Resin
COMMON NAMESPoly(bisphenol-A diglycidyl ether- alt - ethylenediamine), DGEBA-Edamine Epoxy
STRUCTURE BASED NAME Poly(iminoethyleneimino-2-hydroxytrimethyleneoxy-1,4-phenylene-(dimethylmethylene)-1,4-phenylene-oxy-2-hydroxtrimethylene)
ACRONYMS
CAS #
CurlySMILES C{-}C(O)COc1ccc(cc1)C(C)(C)c2ccc(cc2)OCC(O)CNCCN{n+}


IDENTIFIERS OF MONOMER(S)

CAS # 116161-20-7.107-15-3
COMMON NAMESBisphenol A diglycidyl ether + Ethylenediamine
SMILES CC(c1ccc(cc1)OCC1OC1)(c1ccc(cc1)OCC1OC1)C.NCCN
Std. InChI 1S/C21H24O4/c1-21(2,15-3-7-17(8-4-15)22-11-19-13-24-19)16-5-9-18(10-6-16)23-12-20-14-25-20/h3-10,19-20H,11-14H2,1-2H3.1S/C2H8N2/c3-1-2-4/h1-4H2
Std. InChIKey LCFVJGUPQDGYKZ-UHFFFAOYSA-N.PIICEJLVQHRZGT-UHFFFAOYSA-N

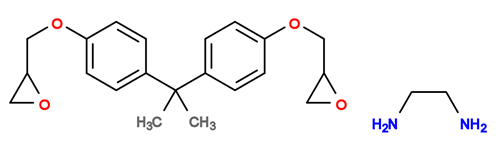

STRUCTURE
Bisphenol A diglycidyl ether + Ethylenediamine


Thermo-Physical Properties: Experimental / Literature Data

PROPERTYUNITVALUE / RANGEPREFERRED
Molar Volume VmmL mol-1
Density ρg mL-1
Solubility Parameter δMPa1/2 22.4
Molar Cohesive Energy EcohJ mol-1 176800
Glass Transition Temperature TgK 410
Molar Heat Capacity CpJ (mol K)-1
Entanglement Molecular Weight Meg mol-1
Index of Refraction nnone


Thermo-Physical Properties: Calculated Data

PROPERTYUNITVALUE / RANGEPREFERRED
Molecular Weight of Repeat unitg mol-1 400.52
Van-der-Waals Volume VvWmL mol-1 223.77
Molar Volume VmmL mol-1349.1 - 356.0352.5
Density ρg mL-1 1.13 - 1.151.14
Solubility Parameter δMPa1/2 22.1 - 22.322.2
Molar Cohesive Energy EcohJ mol-1 172300 - 176000174100
Glass Transition Temperature TgK 394 - 409409
Molar Heat Capacity CpJ (mol K)-1494 - 524508
Entanglement Molecular Weight Meg mol-11600 - 21001900
Index of Refraction nnone1.55 - 1.621.57
