| POLYMER CLASS | Polyphenylethers |
| COMMON NAMES | Poly(2,6-dimethyl-p-phenylene oxide), Poly(2,6-dimethylphenol), Noryl® (blend with polystyrene) |
| STRUCTURE BASED NAME | Poly[oxy(2,6-dimethyl-p-phenylene)], Poly(2,6-dimethyl-1,4-phenylene oxide) |
| ACRONYMS | PPO, PPE |
| CAS # | 25134-01-4 |
| CurlySMILES | O{-}c1c(C)cc{n+}(cc1(C)) |
| CAS # | 1300-71-6 |

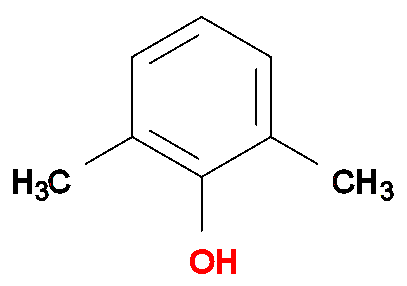

| COMMON NAMES | 2,6-Xylenol |
| SMILES | Oc1c(C)cccc1(C) |
| Std. InChI | 1S/C8H10O/c1-6-4-3-5-7(2)8(6)9/h3-5,9H,1-2H3 |
| Std. InChIKey | NXXYKOUNUYWIHA-UHFFFAOYSA-N |
| STRUCTURE |
|
| PROPERTY | UNIT | VALUE / RANGE | PREFERRED |
| Molar Volume Vm | mL mol-1 | 112.3 - 113.4 | 112.8 |
| Density ρ | g mL-1 | 1.02 - 1.08 | 1.06 |
| Solubility Parameter δ | MPa1/2 | 18.3 | |
| Molar Cohesive Energy Ecoh | J mol-1 | 37600 | |
| Glass Transition Temperature Tg | K |
462- 498 423 - 440 | 483 |
| Molar Heat Capacity Cp | J (mol K)-1 | 146 - 152 | 149 |
| Entanglement Molecular Weight Me | g mol-1 | 3500 - 3600 | 3550 |
| Index of Refraction n | none | 1.46 - 1.58 | 1.58 |
| PROPERTY | UNIT | VALUE / RANGE | PREFERRED |
| Molecular Weight of Repeat unit | g mol-1 | 120.15 | |
| Van-der-Waals Volume VvW | mL mol-1 | 67.81 | |
| Molar Volume Vm | mL mol-1 | 106.1 - 123.4 | 112.8 |
| Density ρ | g mL-1 | 0.97 - 1.13 | 1.07 |
| Solubility Parameter δ | MPa1/2 | 17.0 - 20.1 | 18.9 |
| Molar Cohesive Energy Ecoh | J mol-1 | 35600 - 44200 | 40500 |
| Glass Transition Temperature Tg | K | 443 - 483 | 465 |
| Molar Heat Capacity Cp | J (mol K)-1 | 143 - 152 | 147 |
| Entanglement Molecular Weight Me | g mol-1 | 2600 - 4800 | 3500 |
| Index of Refraction n | none | 1.49 - 1.59 | 1.52 |
Last updated: June 7, 2016
