Nylon 6-10

Nylon 6-10

Nylon 6,10 - Poly(hexamethylene sebacamide)

NAMES AND IDENTIFIERS OF POLYMER

POLYMER CLASS	Polyamide
COMMON NAMES	Nylon 6-10, Polyamide 6-10, Poly(hexamethylene sebacamide)
STRUCTURE BASED NAME	Poly(iminosebacoyliminohexane-1,6-diyl), Poly(iminohexamethyleneiminosebacoyl)]
ACRONYMS	PA6-10
CAS #
CurlySMILES	N{-}C(=O)CCCCCCCCC(=O)NCCCCCC{n+}

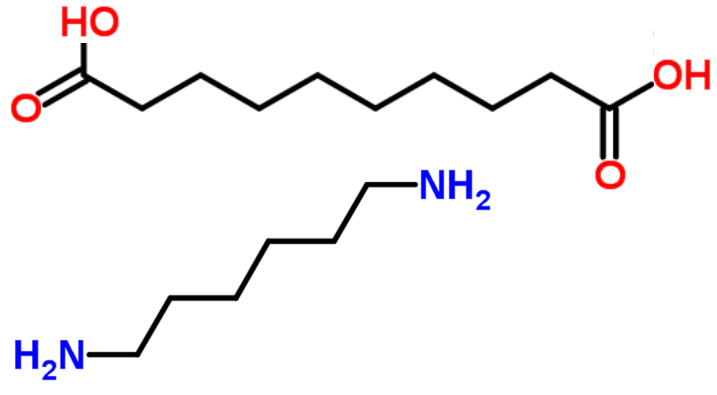

IDENTIFIERS OF MONOMER(S)

CAS #
COMMON NAMES	Sebacic Acid, Hexanediamine
SMILES	OC(=O)CCCCCCCCC(=O)O.NCCCCCCN
Std. InChI	InChI=1S/C10H18O4/c11-9(12)7-5-3-1-2-4-6-8-10(13)14/h1-8H2,(H,11,12)(H,13,14).InChI=1S/C6H16N2/c7-5-3-1-2-4-6-8/h1-8H2
Std. InChIKey	HRNRROMY-UHFFFAOYSA-N.NAQMVNRVTILPCV-UHFFFAOYSA-N
STRUCTURE

Thermo-Physical Properties: Experimental / Literature Data

PROPERTY	UNIT	VALUE / RANGE	PREFERRED
Molar Volume V_m	mL mol^-1	271.5
Density ρ	g mL^-1	1.04
Solubility Parameter δ	MPa^1/2
Molar Cohesive Energy E_coh	J mol^-1
Glass Transition Temperature T_g	K	310 - 343	323
Molar Heat Capacity C_p	J (mol K)^-1	449.1 - 448.0	448.5
Entanglement Molecular Weight M_e	g mol^-1
Index of Refraction n	none	1.53 - 1.55	1.54

Thermo-Physical Properties: Calculated Data

PROPERTY	UNIT	VALUE / RANGE	PREFERRED
Molecular Weight of Repeat unit	g mol^-1	282.4
Van-der-Waals Volume V_vW	mL mol^-1	178.8
Molar Volume V_m	mL mol^-1	274.3 - 279.0	276.1
Density ρ	g mL^-1	1.01 - 1.03	1.02
Solubility Parameter δ	MPa^1/2	22.0 - 24.1	23.1
Molar Cohesive Energy E_coh	J mol^-1	133000 - 160000	147000
Glass Transition Temperature T_g	K	295 - 323	321
Molar Heat Capacity C_p	J (mol K)^-1	427 - 449	441
Entanglement Molecular Weight M_e	g mol^-1	1500 - 2800	2050
Index of Refraction n	none	1.50 - 1.51	1.51

Last updated: January 13, 2018
