Nylon 10-10

Nylon 10-10

Nylon 10,10 - Poly(decamethylene sebacamide)

NAMES AND IDENTIFIERS OF POLYMER

POLYMER CLASS	Polyamide
COMMON NAMES	Nylon 10-10, Polyamide 10-10, Poly(decamethylene sebacamide)
STRUCTURE BASED NAME	Poly(iminosebacoyliminodecamethylene), Poly(iminodecanedioyliminodecane-1,10-diyl)
ACRONYMS	PA10-10
CAS #
CurlySMILES	N{-}C(=O)CCCCCCCCC(=O)NCCCCCCCCCC{n+}

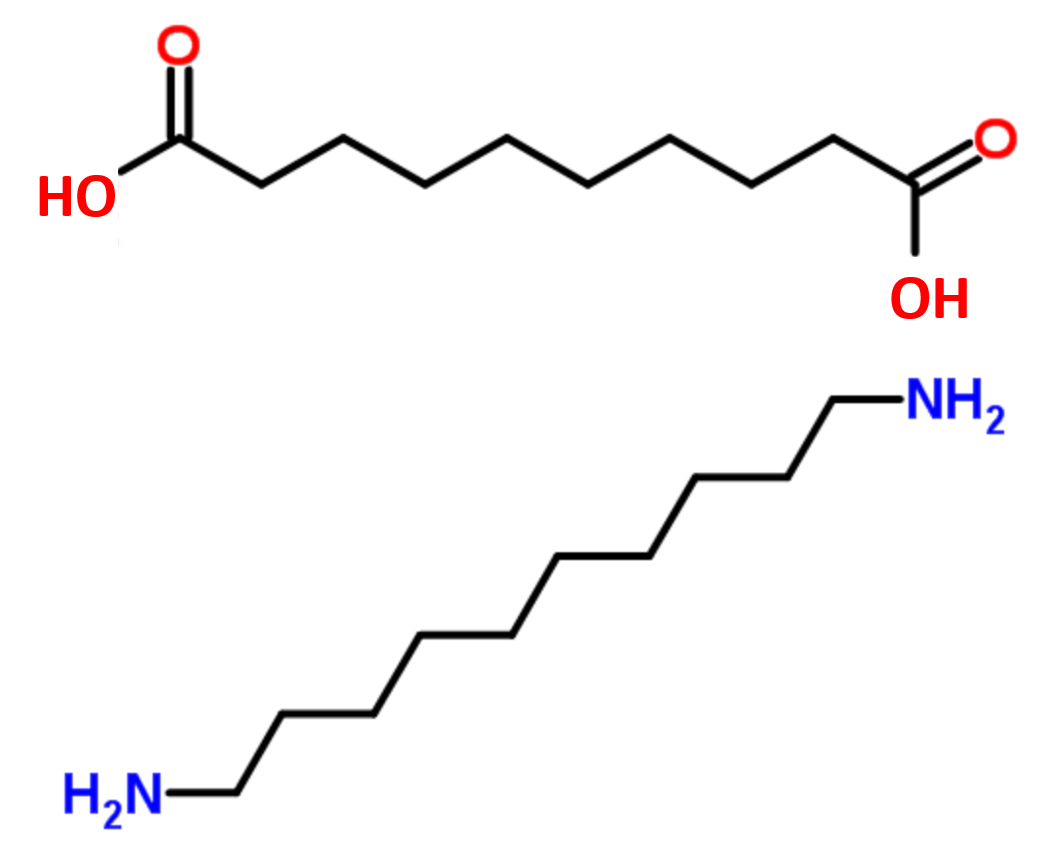

IDENTIFIERS OF MONOMER(S)

CAS #	111-20-6, 211-471-9
COMMON NAMES	Sebacic Acid, 1,10-Decanediamine
SMILES	OC(=O)CCCCCCCCC(=O)O.NCCCCCCCCCCN
Std. InChI	InChI=1S/C10H18O4/c11-9(12)7-5-3-1-2-4-6-8-10(13)14/h1-8H2,(H,11,12)(H,13,14).InChI=1S/C10H24N2/c11-9-7-5-3-1-2-4-6-8-10-12/h1-12H2
Std. InChIKey	CXMXRPHRNRROMY-UHFFFAOYSA-N.YQLZOAVZWJBZSY-UHFFFAOYSA-N
STRUCTURE

Thermo-Physical Properties: Experimental / Literature Data

PROPERTY	UNIT	VALUE / RANGE	PREFERRED
Molar Volume V_m	mL mol^-1	≥ 329
Density ρ	g mL^-1	≤ 1.03
Solubility Parameter δ	MPa^1/2
Molar Cohesive Energy E_coh	J mol^-1
Glass Transition Temperature T_g	K	315 - 333	323
Molar Heat Capacity C_p	J (mol K)^-1
Entanglement Molecular Weight M_e	g mol^-1
Index of Refraction n	none

Thermo-Physical Properties: Calculated Data

PROPERTY	UNIT	VALUE / RANGE	PREFERRED
Molecular Weight of Repeat unit	g mol^-1	338.54
Van-der-Waals Volume V_vW	mL mol^-1	219.9
Molar Volume V_m	mL mol^-1	337 - 345	341
Density ρ	g mL^-1	0.98 - 1.01	0.99
Solubility Parameter δ	MPa^1/2	21.1 - 22.6	21.9
Molar Cohesive Energy E_coh	J mol^-1	150000 - 175000	163500
Glass Transition Temperature T_g	K	309 - 317	314
Molar Heat Capacity C_p	J (mol K)^-1	521 - 549	539 (s)
Entanglement Molecular Weight M_e	g mol^-1	1400 - 2700	1900
Index of Refraction n	none	1.50 - 1.51	1.50

Last updated: January 13, 2018
